Video Measuring System

Video Measuring System
Video Measuring System
Product Code : VMS-100D
Brand Name : OPTICA
Product Description

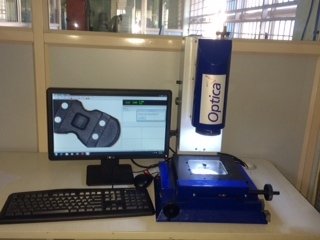

Optica - Video Measuring System X Axis Movement: 100mm Y Axis Movement: 100mm Z Axis Movement: 100mm 550 mm 410 mm 305 mm Specification: •Zoom Capability: 10x to 70x •Heavy Base with fluorescent ring light illumination system & Surface Light. •Magnification (1/3” CMOS/14” Color TV monitor) = with 0.5x adapter 10x to 70x (On monitor) •Working Distance: 108mm. •Fine focusing by Lead Screw *USB plug & play for existing PC *Includes Measurement software CD * Includes System software for your PC.  Dxf Superimposition on Still image (Profile of component) Model SmartScan-1 dimension 550*305*410(L*W*H) XY range X - 100, Y - 100 Workbench( Glass desk surface - 100 x 100 mm) Loading weight - 20kg CMOS - USB camera- 5 MP Profile & Sample Light for Clear View. Image and measuring system Live Video Support for Adjusting focus, Capture of live video in BMP format, Image export in following formats: BMP, JPEG, PNG, TIFF. Draw Feature: Line, Arc, Circle (2 point & 3 point), Rectangle. 2D Measurement tools: Distance between two lines, Perpendicular distance & aligned distance , Angle between the lines, Radius measurement of Arc & Circle, Center distance of circles. video amplification power: 0.5X - 20x 120x Working Distance: 90mm Display Resolution: 0.001mm Annotations for 2D Measurement, Dock able measurement window, Preview window support for Operations, Rich and Flexible user interface design, Tolerance report based on measurement. Measuring X, Y linear accuracy: - 5 microns precision Lighting (LED)surface ring light + bottom parallel source light Working 230V±10%(AC) 50HZ (Note: an earth wire environment ≦4Ω is necessary) Working relative humidity of 30~75%, away from temperature vibration source   System requirements for Opticaâ„¢ SmartScan Operating System • Microsoft Windows 7 Enterprise • Microsoft Windows 7 Ultimate • Microsoft Windows 7 Professional • Microsoft Windows 7 Home Premium CPU Type For 32-bit : 32-bit Intel® Coreâ„¢ i3 , 3.40 GHz For 64-bit 64-bit Intel® Coreâ„¢ i3 , 3.40 GHz Memory 2 GB (4 GB recommended) Display Resolution 1024x768 (1600x1050 or higher recommended) with True Color Display Card Windows display adapter capable of 1024x768 with True Color capabilities. DirectX® 9 or DirectX 11 compliant card recommended but not required. In case of Windows display adapter not available and poor resolutions addition motherboard with inbuilt graphics(Intel HD 4000 etc) Disk Space Installation 300MB Pointing Device USB ,HID compliant device

We have two types of Video Measuring System. Kindly contact us for detail description.
